Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

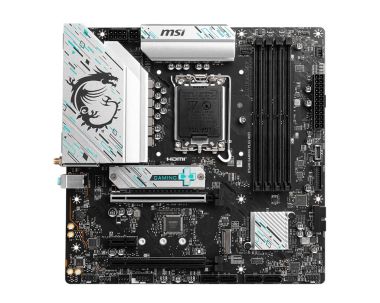

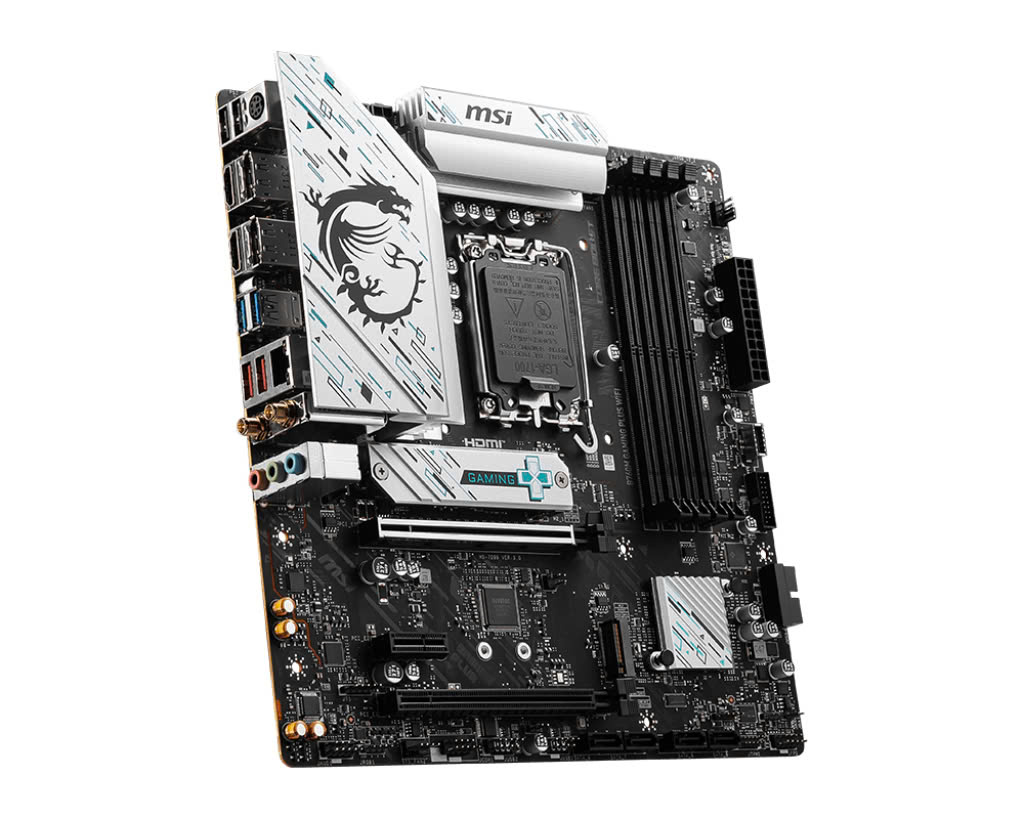

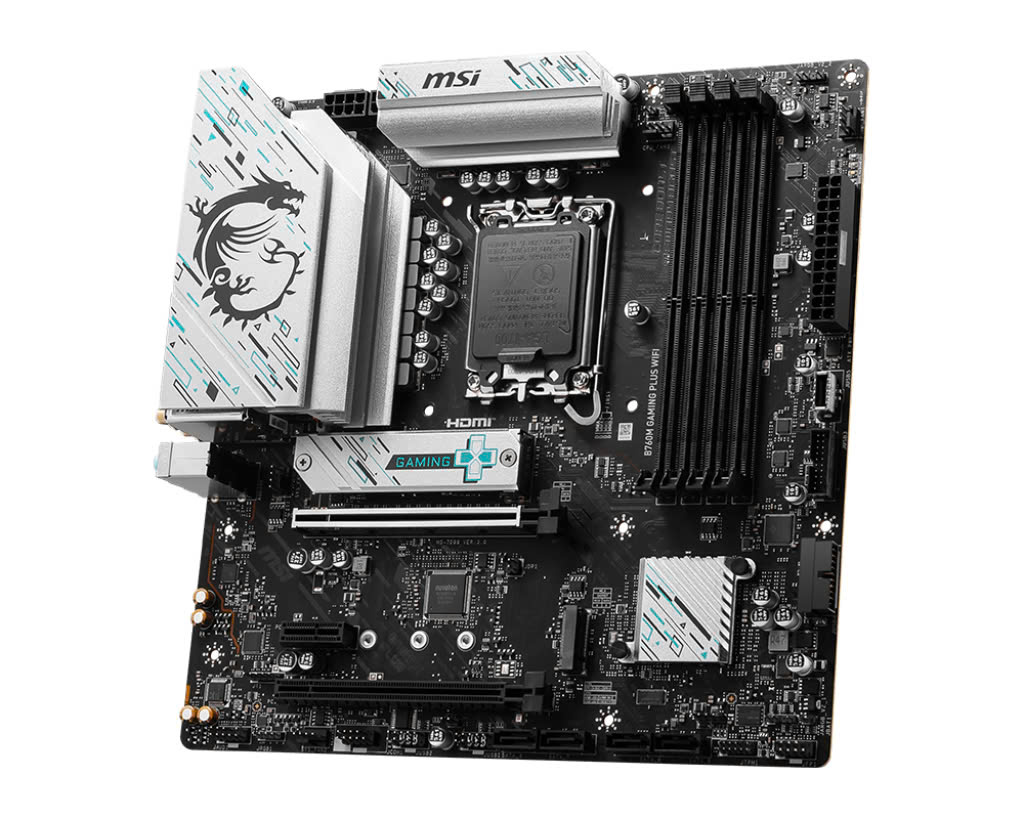

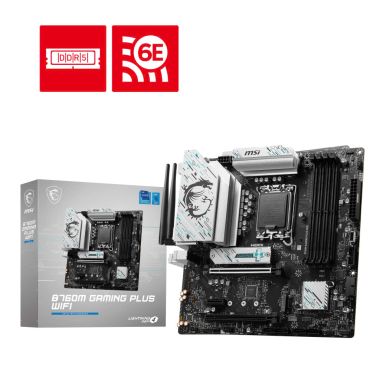

B760M GAMING PLUS WIFI DDR5

CPU hỗ trợ

Intel thế hệ 12/13/14

Chipset

INTEL B760

RAM hỗ trợ

4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Khe cắm mở rộng

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Ổ cứng hỗ trợ

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

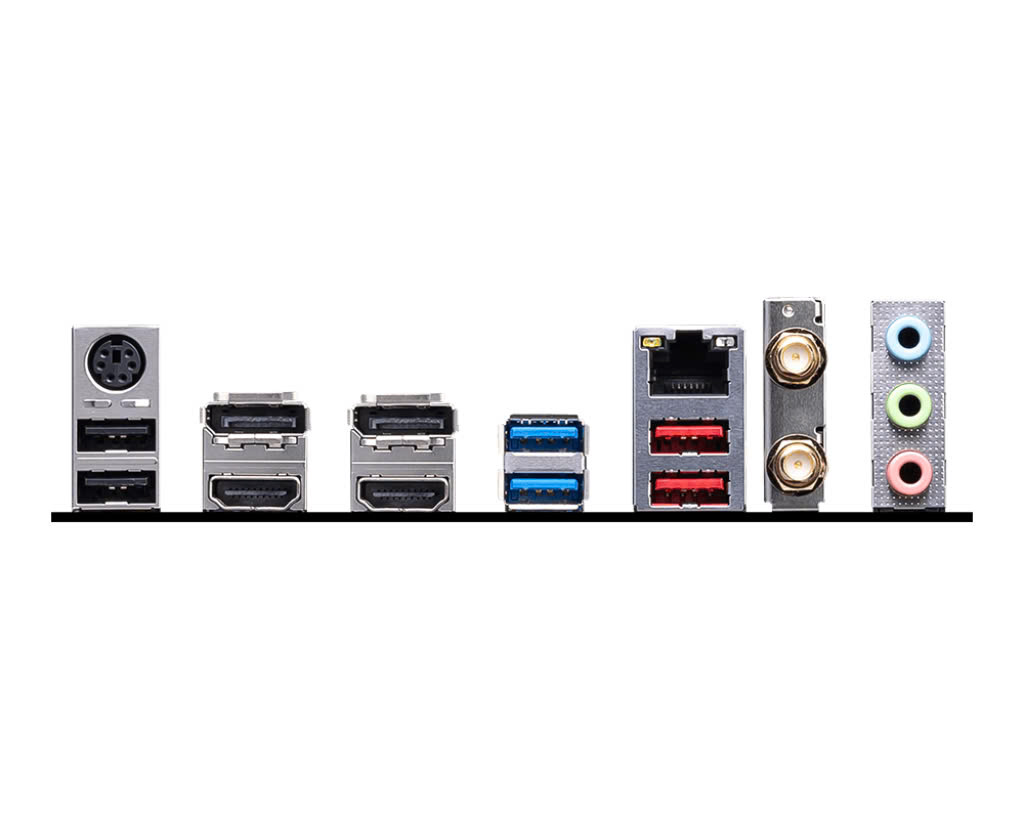

Cổng kết nối (Back Panel)

Keyboard / Mouse
DisplayPort
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
USB 2.0
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
Audio Connectors

LAN / Wireless

Realtek® RTL8125BG 2.5G LAN

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

Kích cỡ

mATX
243.84mmx243.84mm
