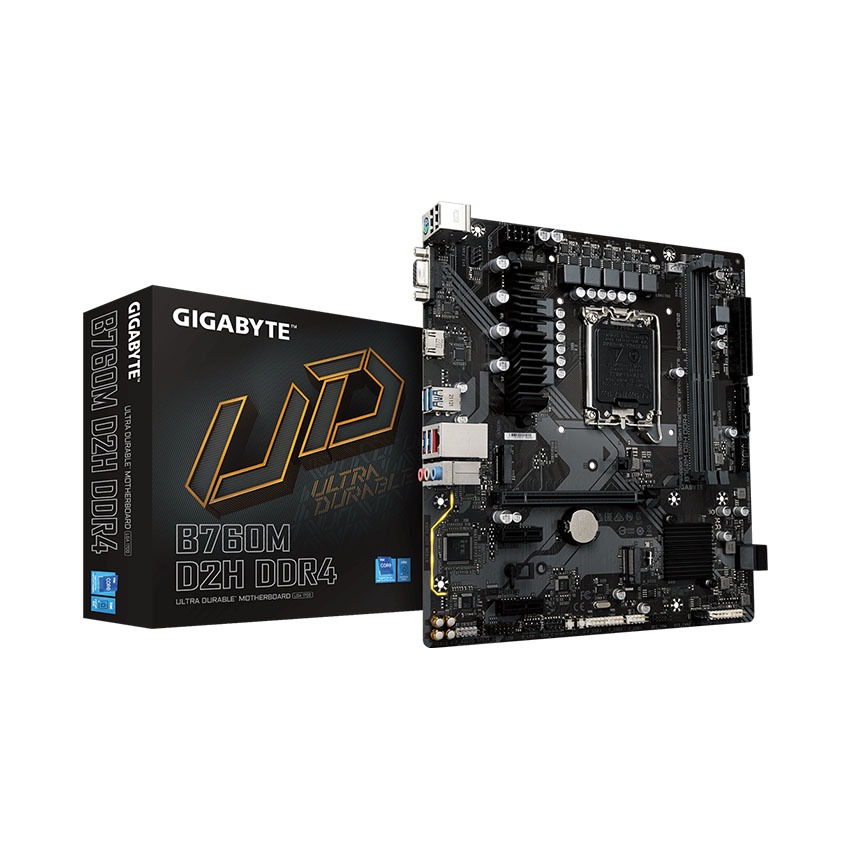

MAINBOARD GIGABYTE B760M D2H DDR4 hiệu suất không điều chỉnh của bo mạch chủ GIGABYTE được đảm bảo nhờ thiết kế tản nhiệt sáng tạo và tối ưu hóa để đảm bảo CPU, Chipset, SSD ổn định tốt nhất và nhiệt độ thấp trong ứng dụng đầy tải và hiệu suất chơi game.
Thiết kế VRM kỹ thuật số lai 6+2+1 pha
MOSFET 6+2+1 pha RDS(on) thấp. Cuộn cảm và tụ điện cao cấp để cải thiện phản hồi nhất thời và giảm thiểu dao động
Thiết kế PCIe 4.0
Mainboard Gigabyte B760M D2H DDR4 đã sẵn sàng hoạt động với các thiết bị PCIe 4.0 dự kiến sẽ có băng thông gấp ba lần so với các thiết bị PCIe 3.0 hiện tại. Để đạt tốc độ cao và duy trì tính toàn vẹn tín hiệu tốt, GIGABYTE R&D sử dụng PCB trở kháng thấp để mang lại hiệu suất tối đa.
Hỗ trợ DDR4 XMP Lên đến 5333MHz
GIGABYTE đang cung cấp một nền tảng đã được thử nghiệm và chứng minh, đảm bảo khả năng tương thích phù hợp với các cấu hình lên đến 5333MHz và hơn thế nữa. Tất cả những gì người dùng cần làm để đạt được mức tăng hiệu suất này là đảm bảo rằng mô-đun bộ nhớ của họ có khả năng XMP và chức năng XMP được kích hoạt và bật trên bo mạch chủ GIGABYTE khác của họ.
Smart Fan 6
Mainboard Gigabyte B760M D2H DDR4 được tích hợp Smart Fan 6 chứa một số tính năng làm mát độc đáo đảm bảo PC chơi game duy trì hiệu suất của nó trong khi vẫn mát và yên tĩnh. Nhiều đầu cắm quạt có thể hỗ trợ bơm và quạt PWM/DC, đồng thời người dùng có thể dễ dàng xác định từng đường cong của quạt dựa trên các cảm biến nhiệt độ khác nhau trên bo mạch thông qua giao diện người dùng trực quan.
KẾT NỐI
Mainboard Gigabyte B760M D2H DDR4 cho phép trải nghiệm kết nối tối ưu với tốc độ truyền dữ liệu cực nhanh thông qua mạng và bộ lưu trữ thế hệ tiếp theo.
Thông Số Kỹ Thuật Chi Tiết Mainboard Gigabyte B760M D2H DDR4:
2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộng
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợ
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
